Understanding Camera Masking
What is Masking?
Masking in your surveillance camera systems refers to the selective blocking or covering of specific areas within the camera's field of view. This feature allows you to define zones where the camera should ignore motion detection or recording triggers. Essentially, masking enables you to customize which parts of the camera's view are monitored actively and which are not.
Why is it important to mask your cameras/views correctly?
Correctly setting up masking is crucial for several reasons:
- Privacy Protection: If needed, masking helps protect privacy by excluding sensitive areas such as windows facing neighboring properties or private spaces within a building from surveillance.
- Reducing False Alarms: By masking out areas with frequent movement (like high-traffic areas or busy roads), false alarms triggered by non-threatening activity can be minimized. This ensures that surveillance operators or automated systems only respond to genuine security threats at your site.
Best Practices for Masking
To maximize the effectiveness of masking, please consider the following best practices:
- Thorough Assessment: Before setting up/adjusting your masking, conduct a thorough assessment of the camera's field of view to identify areas that require masking for privacy or to reduce false alarms.
- Regular Monitoring and Adjustment: Periodically review and adjust masking settings as needed. Changes in environmental conditions (like seasonal foliage changes) or physical obstructions may necessitate updates to masking configurations.
- Overlap and Edge Adjustment: When defining masked zones, consider overlapping adjacent zones to ensure comprehensive coverage and minimize the risk of missed events near the boundaries.
- After Camera Adjustment/Camera Additions: Reviewing masking after adjustments to the site map or plan are made, such as the physical relocation or addition of new cameras, is an important step in increasing the security of your site. Effective masking reduces false alarms.
In conclusion, by implementing these best practices, you can ensure that your site's monitoring is not only compliant with privacy regulations but also optimized for effective security monitoring and risk management. Masking, when done correctly, enhances the overall efficiency and reliability of our surveillance operations, providing peace of mind to you and your business.

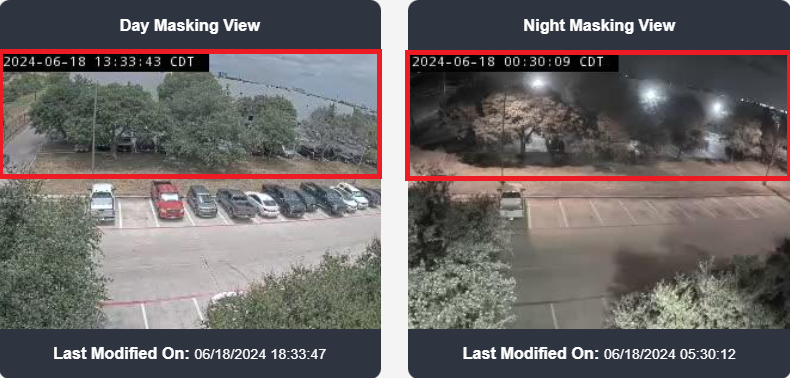

Example:
In this example, no surveillance or monitoring is conducted within the marked red area, while all activity outside this area is subject to monitoring.
